Sanden Model/s #: 4277U1, 4277E1, 4277, 4418, 4418E, 4418R

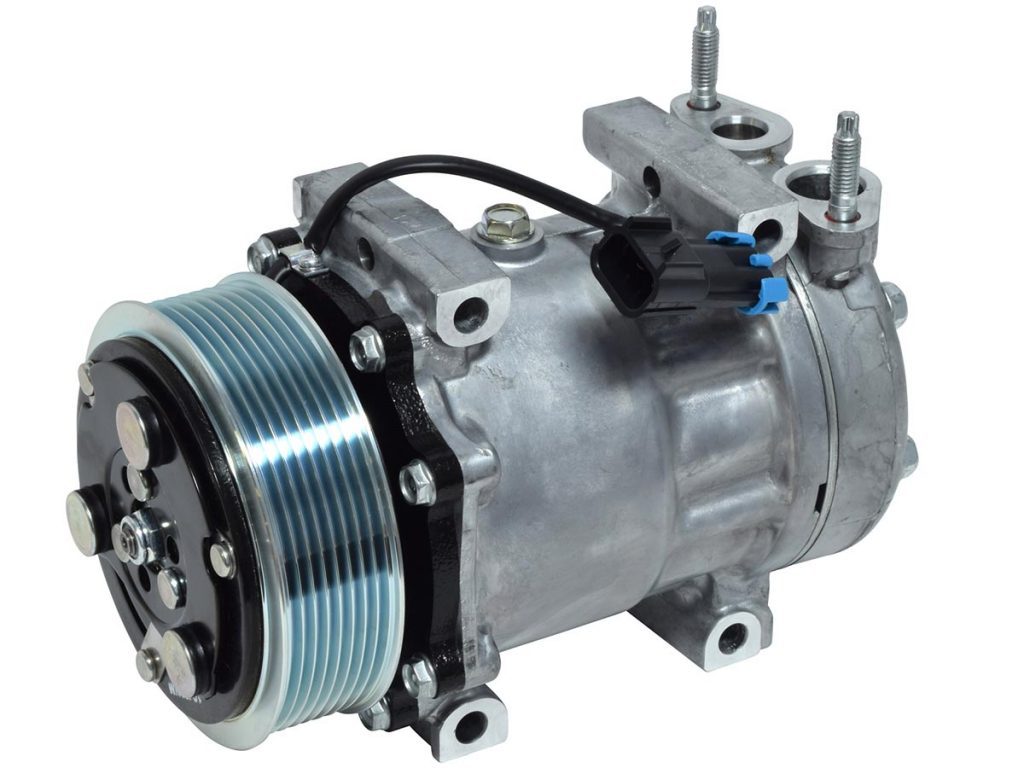

Description: Navistar Trucks Sanden Compressor Model SD7H15E/HD 8 groove 119mm 12V
Additional Description: Enhanced Version
OEM#: 3792438-C1, SKI4277, 3582435-C1
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Oil Type: PAG100
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4418
Wire Type: 2 Wire Female Packard #15300002
Model: SD7H15E, SD7H15HD
Product Name: Sanden Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Compressor Mount Type: SD7 Direct Long
Mount T=Top/ B=Bottom (mm): T92 B87
Port Angle: V
Porting Style: O-Ring Compression
Port Clocking: 12:00
Head Port Style: O-Ring Compression
Gauge Line to First Groove: 36.58
Gauge Line to Middle Groove: 49.00
Gauge Line to End Groove: 61.50
Replacement Clutch Assembly: 7731-9810
Schematic: Click Here
Service Manual: CLICK HERE
Cross References: 1101095, 54277, 5393, 300-4393, SD4277, 4277, 124504, PTAC54277, 03-0812, 3792438C1, 3792438-C1, 3792438C2, 300-4388, 330-2160, 3582435-C1, 4418, 03-0804, 20-04418, 3582435C1, 124496, PTAC5393, 330-2106, ACC3160, 3582435C1, 168582, 5512691, 6512691, 7512691, 3582435C1, 2004418, 2004418AM, 2004418R, C1715, 3582435C1
Application: International (Navistar) Sanden Compressor
2017 Caterpillar CT660 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2016 Caterpillar CT660 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2016 Caterpillar CT660 Base L6 CC:- CID:928 15.2L U/K FI DI Turbo/Aftercooled/Intercooled U/K VIN:-
2015 Caterpillar CT660 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2015 Caterpillar CT660 Base L6 CC:- CID:928 15.2L U/K FI DI Turbo/Aftercooled/Intercooled U/K VIN:-
2014 Caterpillar CT660 Base L6 CC:- CID:641 10.5L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2014 Caterpillar CT660 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2014 Caterpillar CT660 Base L6 CC:- CID:928 15.2L U/K FI DI Turbo/Aftercooled/Intercooled U/K VIN:-
2013 Caterpillar CT660 Base L6 CC:- CID:641 10.5L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2013 Caterpillar CT660 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2013 Caterpillar CT660 Base L6 CC:- CID:928 15.2L U/K FI DI Turbo/Aftercooled/Intercooled U/K VIN:-
2012 Caterpillar CT660 Base L6 CC:- CID:758 12.4L SOHC FI DI Turbocharged DIESEL VIN:-
2012 Caterpillar CT660 Base L6 CC:- CID:641 10.5L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2012 Caterpillar CT660 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
CATERPILLAR CT660 BASE Compressors
2017 Caterpillar CT680 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2016 Caterpillar CT680 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2015 Caterpillar CT680 Base L6 CC:- CID:758 12.4L U/K FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
Compressors – Sanden Models MODELS 4251-4500 4277
NAVISTAR ANY ANY Compressors
