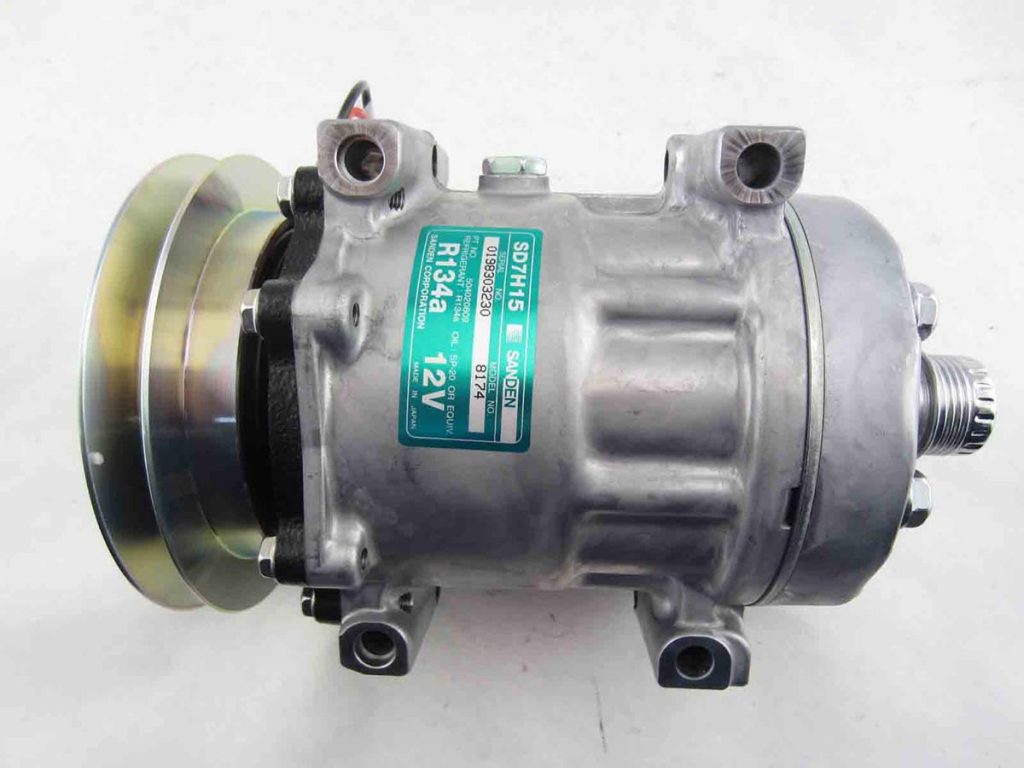

NEW Original Sanden Compressor 8174, 4275 (1101094)

Sanden Model/s #: 4275U1, 4275, 8174

Description: Multi Fit Applications OEM Sanden Compressor Model SD7H15 1A grv. 135mm 12V DIRECT MT HTO
OEM#: 87430122, 87431022, SD8174, 504020809
Rotor Size: 135
Rotor Groove: A1
Coil Voltage: 12
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Short
Ear ID: T92 B87
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 200
Cylinder Head: MD
Port Angle: H
Port Clocking: Rear
Head Port Style: 1X14
Gauge Line to First Groove: 49.55
Gauge Line to Middle Groove: 49.55
Gauge Line to End Groove: 49.55
Connector: 1 Wire Female AMP #282103

Schematic: CLICK HERE

Service Manual: CLICK HERE

Applications:
CASE / IH – Sanden Compressor

Ford-New Holland B95 Backhoe Sanden Compressor

Cross References: 1101094, 4275, 58174, 87430122, 300-4571, 8174, 03-3537, 20-08174, 124630, PTAC58174
