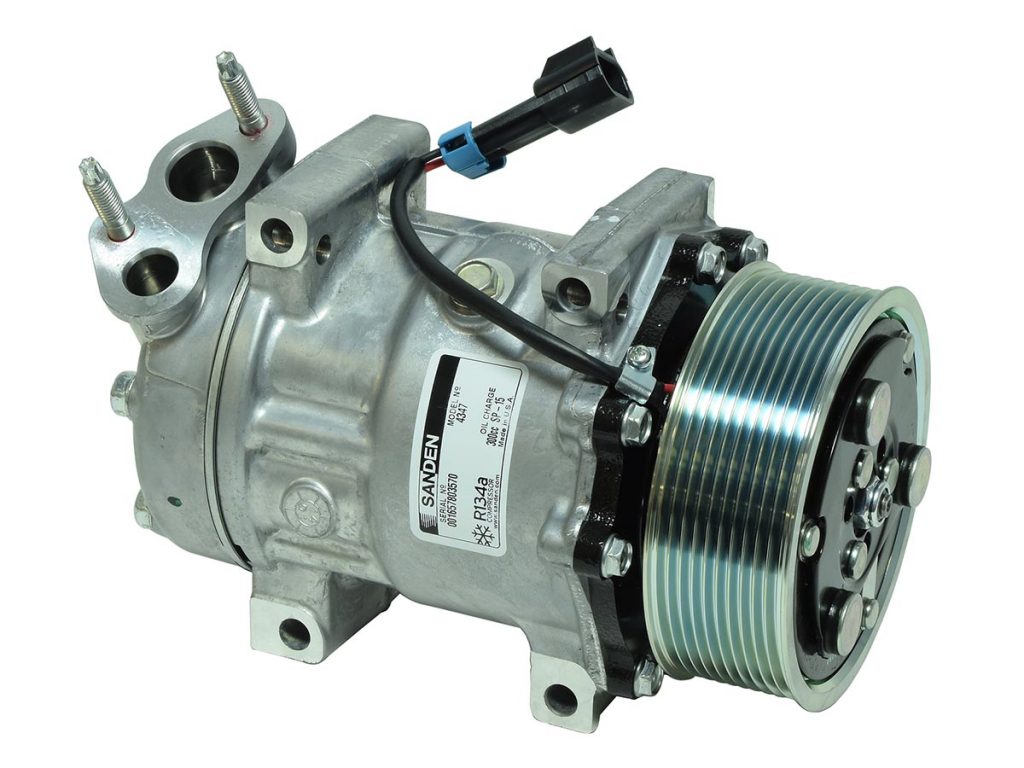

NEW Original Sanden Compressor 4347 Navistar Truck (1101138)

Sanden Model/s #: 4347, 4347E, 4347U

Description: Navistar Trucks Sanden Compressor SD7H15E ENHANCED COMP 10GR 119mm V-PAD 12V ENHANCED
Additional Description: Enhanced Version
OEM#: 3611894-C91, 3611894C1
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Oil Type: PAG100
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4347
Wire Type: 2 Wire Female Packard #15300002
Model: SD7H15E
Product Name: Sanden Compressor 4347
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Compressor Mount Type: SD7 Direct Long
Mount T=Top/ B=Bottom (mm): T92 B87
Port Angle: V
Porting Style: O-Ring Compression
Rotor First Gauge Line: 36.58

Replacement Clutch Assembly: 4347-9930

Schematic: Click Here

Applications:
International (Navistar) Sanden Compressor

Compressors – Sanden Models MODELS 4251-4500 4347
Compressors and Components Compressors SD7H15

2013 International Loadstar Base L6 CC:- CID:570 9.3L SOHC FI DI Turbo/Aftercooled/Intercooled DIESEL VIN:-
2013 International Loadstar Base L6 CC:- CID:641 10.5L SOHC FI DI Turbocharged DIESEL VIN:-
2013 International Loadstar Base L6 CC:- CID:758 12.4L SOHC FI DI Turbocharged DIESEL VIN:-

INTERNATIONAL/NAVISTAR ANY ANY Compressors

Cross References: 1101138, 5400, 300-4395, 330-3474, 3611894-C91, RF999994234, 4347, 03-0805, 1401422, 20-04347, 3611894C91, 124507, 3611894-C92, 3611894C92, PTAC5400, ACC44741, 5096253, 167539, 168539, 5512871, 6512871, 7512871, 3611894C91, 3611894C92, 3611894C91, 200-4347, 2004347AM, 14SD4347, 14SD4347NC, 75R9622, 3611897C91, C2602
