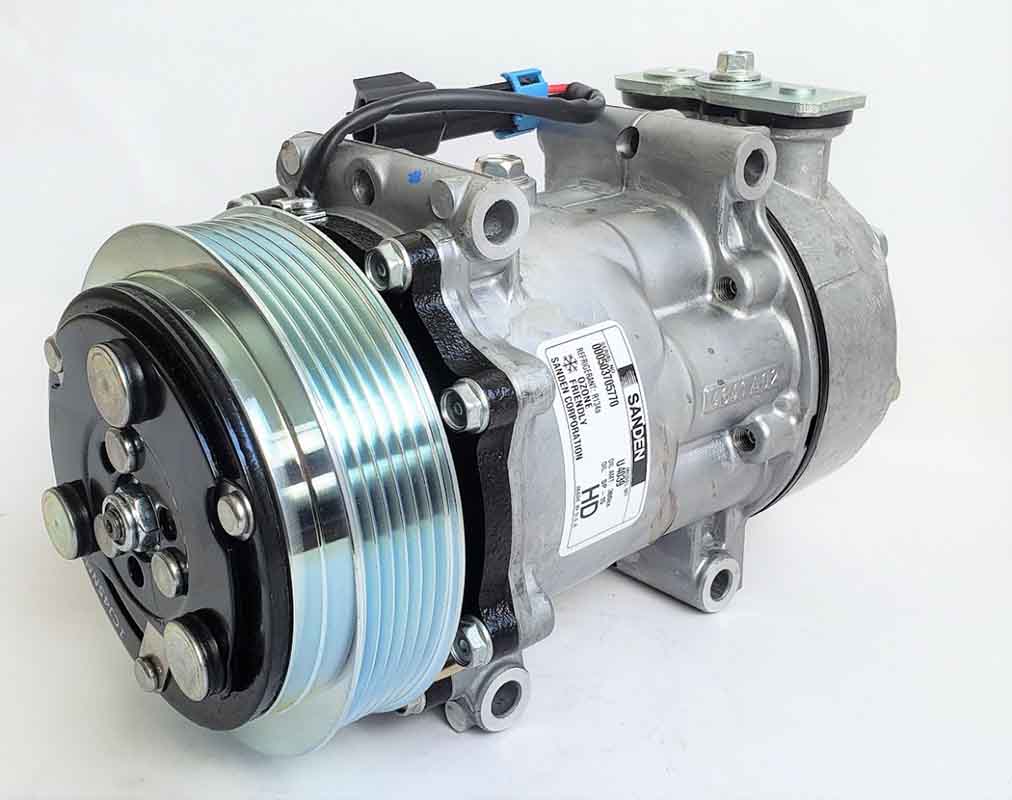

COMPRESSOR NEW Original Sanden 4039, 4731, 4424, F69-6001-122, F69-6002-121 (1101019)

Sanden Model/s #: 4039, 4424, 4731, 1027T6, 4424E, 4424R, 4424QS, 4424S

Description: Peterbilt Trucks Sanden SD7H15HD A/C Compressor 12V with 6 Grooves F69-6001-122, LF0122, 18-5000
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Oil Type: PAG100
Fitting Port Position: Lateral
Fitting Style: Top O-ring Pad
Head Type: GSA
Wire Type: 2 Wire Female Packard #15300002
Model: SD7H15HD
Mounting Type: Direct Long
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Check clutch shaft type
Diode Protection: w/diode

Clutch Assembly: 4424-9931

Schematic: Click Here

Applications:
Kenworth Sanden Compressor
Peterbilt Sanden Compressor

Cross References: 1101019, 5362, 54309, 300-5522, RF999991318, 4309, 03-3716, 124826, PTAC54309, ABP N83 304163, F69-6002-121, 300-4318, 330-2608, 20-04039, 18-05000, 4731-6000, 75R84292, RD-5-10273-0, RF999996143, 4424, 4731, 03-1401, 50-5027, 1402032, ABPN83304163, 124446, ACC3608, F69-6001-122, 300-4319, 1410002, 20-04039-AM, 124449, 18-5000, 509595, 10363181, 77595, 78595, ABPN83304163, 2041752, 5512208, 6512208, 6812208, 7512208, 185000, 4424SAN, 47316000, 1402032, 967412, TEM967412, 2004039, 2004039AM, 2004039S, 2004731, 2004731Q, 2014731, 14SD4731, 14SD4731C, 14SD4731NC, 14SD4731NEW, RD5102730, 4039, 4424, 4731, CO2010CA, C1913, C2007, 031401, 3004318, F696001122, F696002121, LE1650, 59-6418
