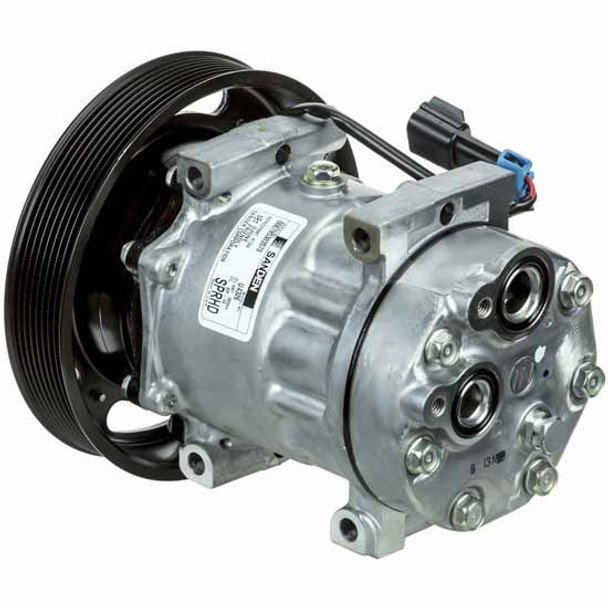

Original Sanden Compressor 4326, 6191 MACK CH PENNACLE, VOLVO VN SERIES (1101127

Sanden Model/s #: 4326, 4326E, 4326U, 6191, 6191H

Description: Mack/Volvo Trucks SD7H15 SUPER HD COMPRESSOR
OEM Number: 20721587, 206RD53M
Volts: 12V
Clutch Diameter: 180mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Disch
Head Type: WV
Wire Type: 2 Wire Female Packard #15300002
Model: 7H15SPRHD
Factory Oil Charge: 300cc Oil
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Compressor Family: SD7H15
Style: SPRHD
Mount Type: SD7 Direct Short
Ear ID: T92 B87
Displacement: 155.00
Port Clocking: Rear
Head Port Style: O-Ring
Gauge Line to First Groove: 31.58
Gauge Line to Middle Groove: 44.09
Gauge Line to End Groove: 56.50
